STEPSNAKE - SYNSO

STEPSNAKE - Modular Synthesizer

Limited Edition | 10HP | 40mA Power Consumption

SYNSO is a modular synthesizer brand from Hangzhou, China, specializing in the design and development of digital-based modular synthesizers with innovative and unique interaction methods.
SYNSO's design philosophy emphasizes digital and parametric thinking to simplify the interaction logic of traditional modules.
The design philosophy of 5YNSO emphasizes the versatility and ease of use of the modules. Its products not only produce rich sounds but also stimulate the user's creativity through unique control methods.

Overview

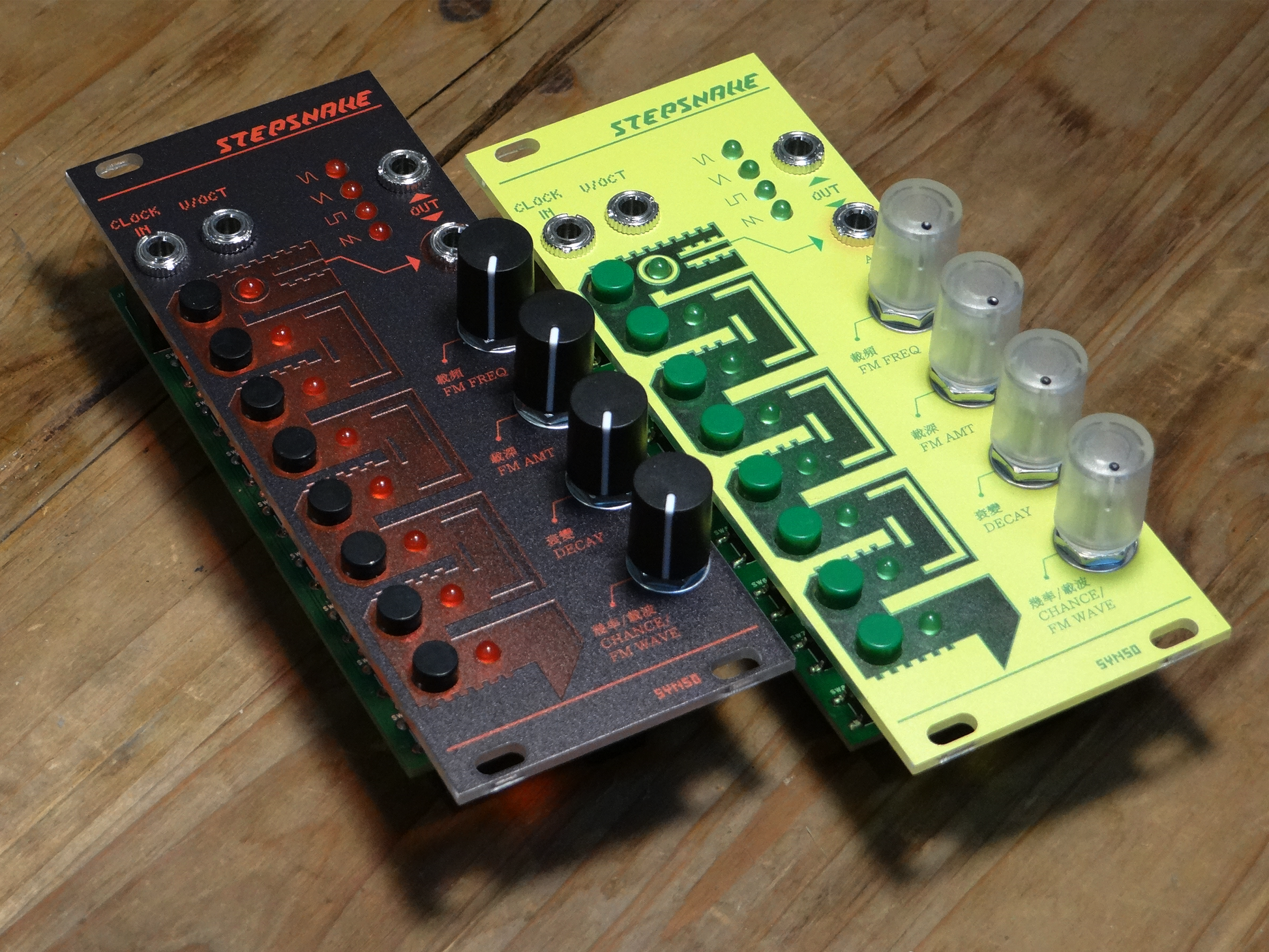

STEPSNAKE is an innovative step-sequencing modulation module that fuses FM synthesis with dynamic step control, offering deep and expressive sound design capabilities. It operates in Step Mode and Macro Mode, allowing for detailed per-step adjustments or overarching global controls. With features like probability-based triggering, waveform modulation, and flexible FM control, STEPSNAKE enables unique sonic exploration beyond traditional sequencing.

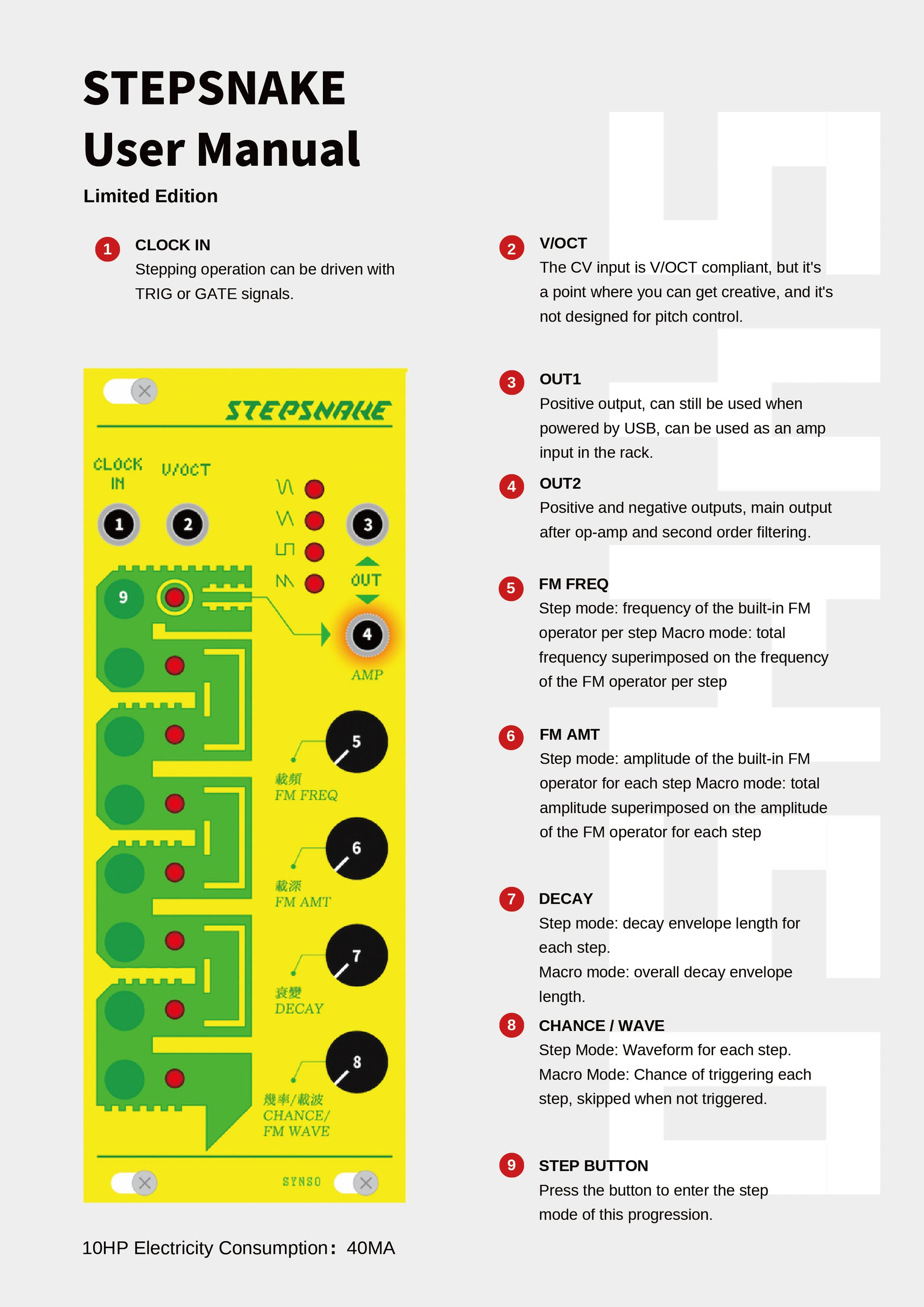

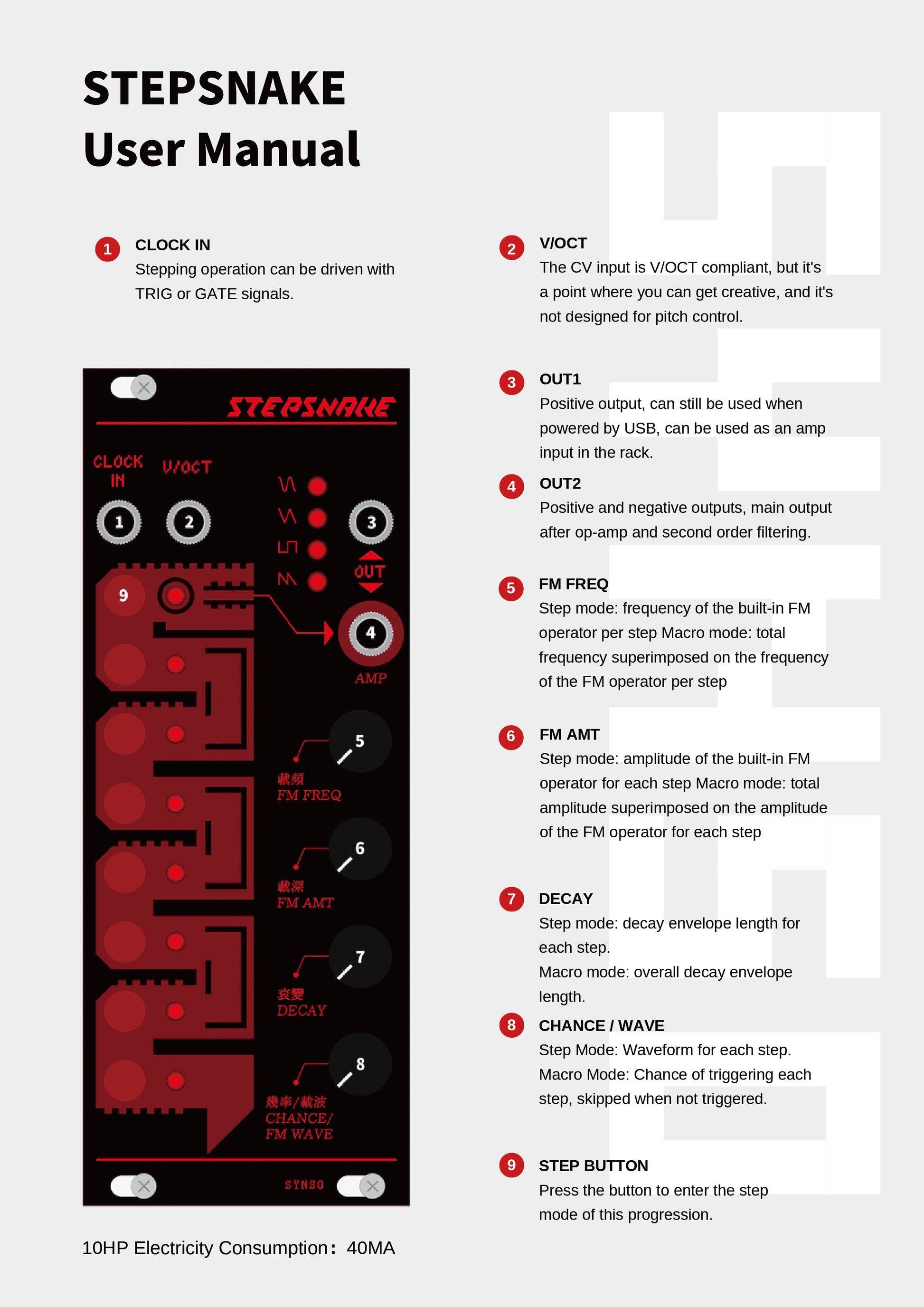

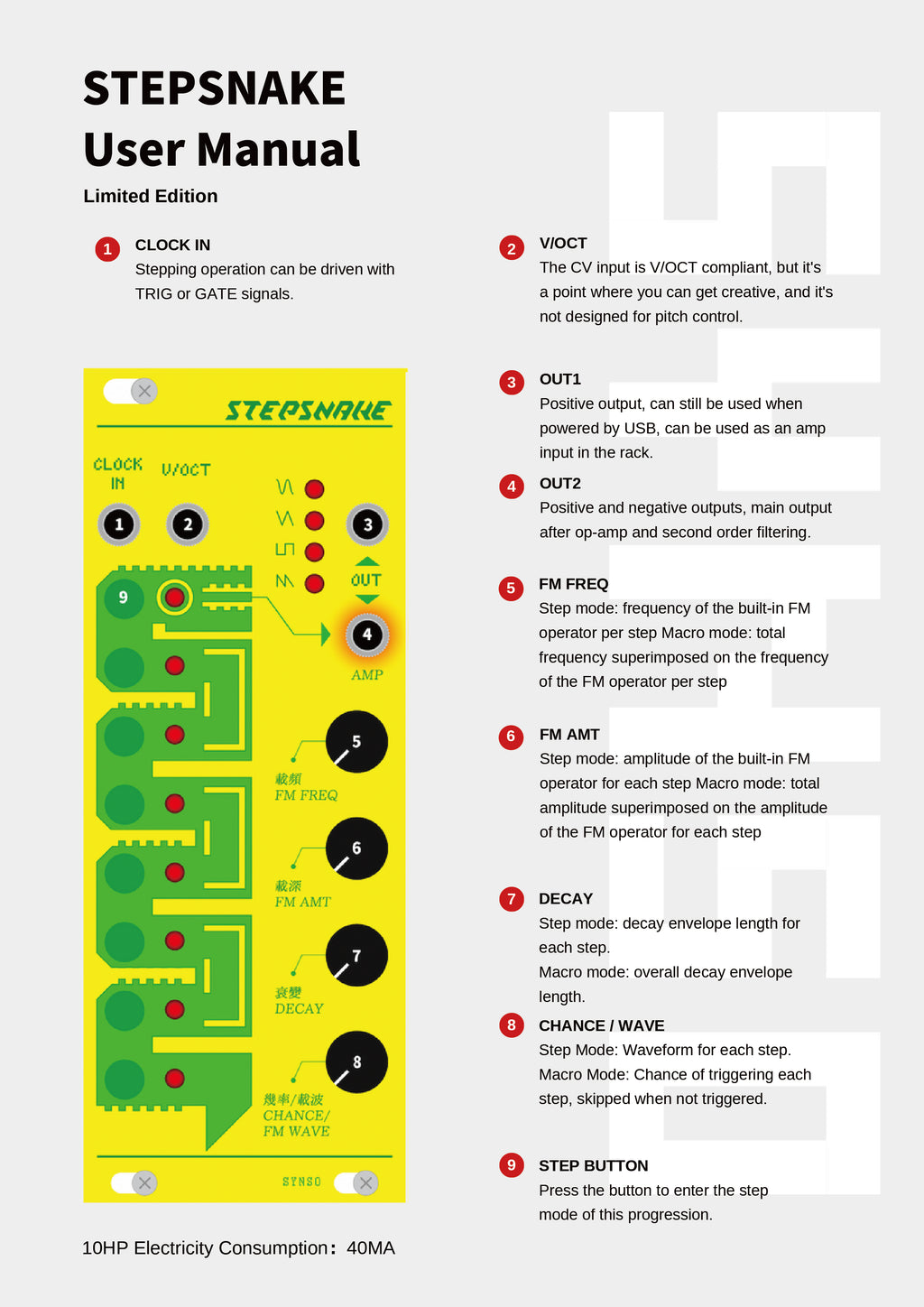

Key Features

• Clock Input: Accepts both TRIG and GATE signals for external synchronization, making it adaptable to any modular system.

• V/OCT Input: While compliant with V/OCT CV, this input is designed for creative modulation rather than traditional pitch control.

• Dual Outputs:

• OUT1 provides a positive signal and functions even when powered via USB, doubling as an amp input within a rack system.

• OUT2 delivers both positive and negative signals, processed through an op-amp and second-order filtering for a refined output.

• FM Frequency Control:

• In Step Mode, sets the FM operator frequency for each step.

• In Macro Mode, applies a total frequency offset across all steps.

• FM Amplitude Control:

• In Step Mode, adjusts the FM modulation depth per step.

• In Macro Mode, globally influences the FM intensity.

• Decay Control:

• In Step Mode, defines the decay envelope length for individual steps.

• In Macro Mode, applies a unified decay setting across all steps.

• Chance/Waveform Modulation:

• In Step Mode, selects the waveform per step.

• In Macro Mode, determines the probability of step activation, dynamically altering rhythmic sequences.

• Step Button: Allows real-time step editing and sequence adjustments, making it a powerful tool for both structured compositions and improvisational performance.

Creative Applications

✅ Rhythmic Sequencing – Use probability-based step skipping to create evolving, unpredictable rhythms.

✅ Sound Design – Sculpt complex tones with step-by-step FM frequency and amplitude modulation.

✅ Dynamic Sequencing – Blend V/OCT input with decay settings for intricate evolving sequences.

✅ Modular Integration – Works seamlessly with other Eurorack modules for expansive sonic possibilities.

STEPSNAKE is perfect for experimental music, generative compositions, ambient soundscapes, and intricate modulation sequencing, offering an intuitive yet deep approach to modular synthesis.
