4 Balance - Akashic

Akashic [4 Balance]

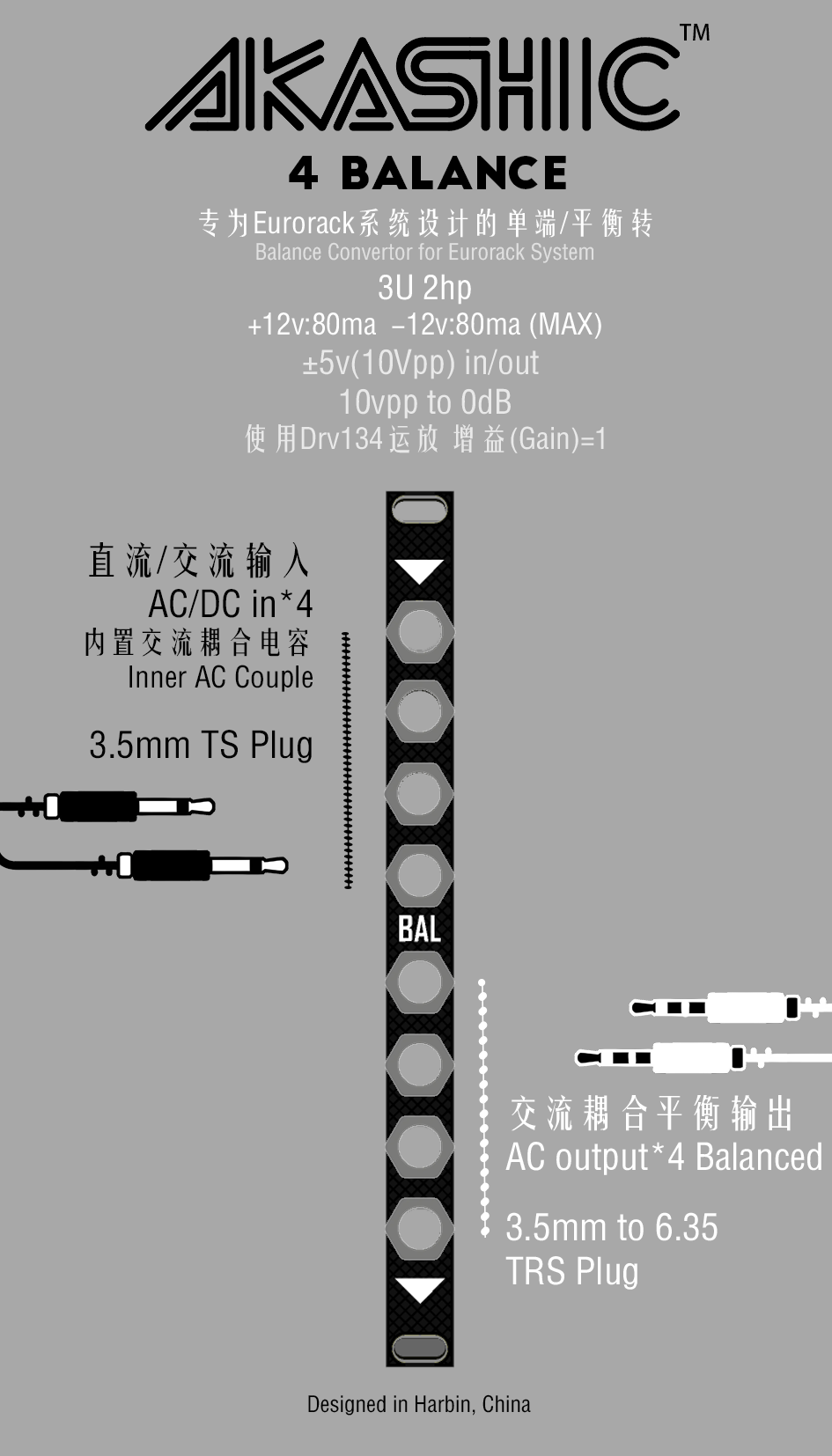

专为Eurorack系统设计的单端/平衡转
Balance Convertor for Eurorack System
3U 2hp
+12v:80ma  -12v:80ma (MAX)
±5v(10Vpp) in/out
10vpp to 0dB
使用Drv134运放 增益(Gain)=1

The current production cycle is about 3 weeks

直流/交流输入
AC/DC in*4
内置交流耦合电容
Inner AC Couple
3.5mm TS Plug

交流耦合平衡输出
AC output*4 Balanced
 3.5mm to 6.35
TRS Plug

包装内物：
1x 4 Balance
1x 16pin to 10pin
