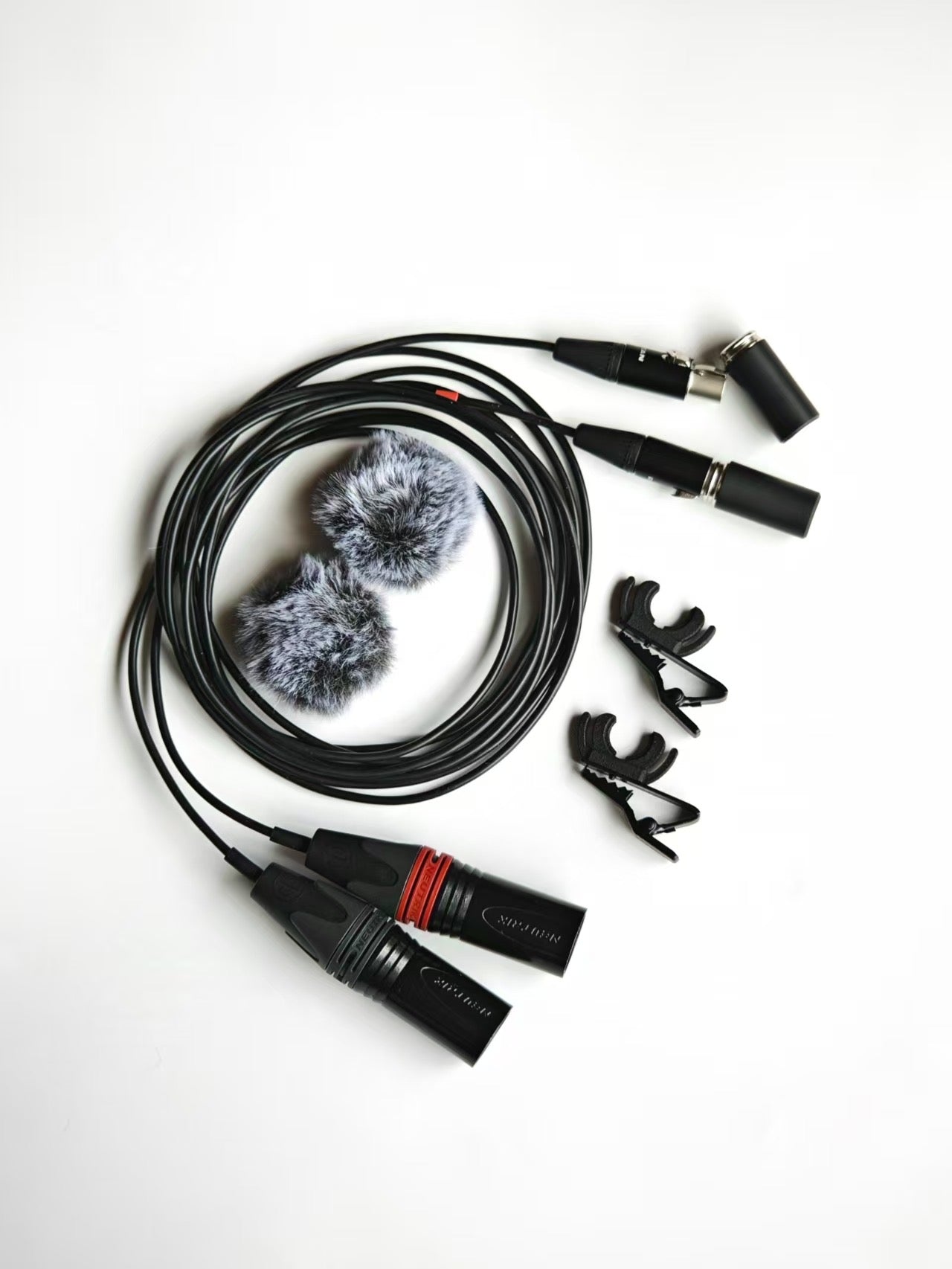

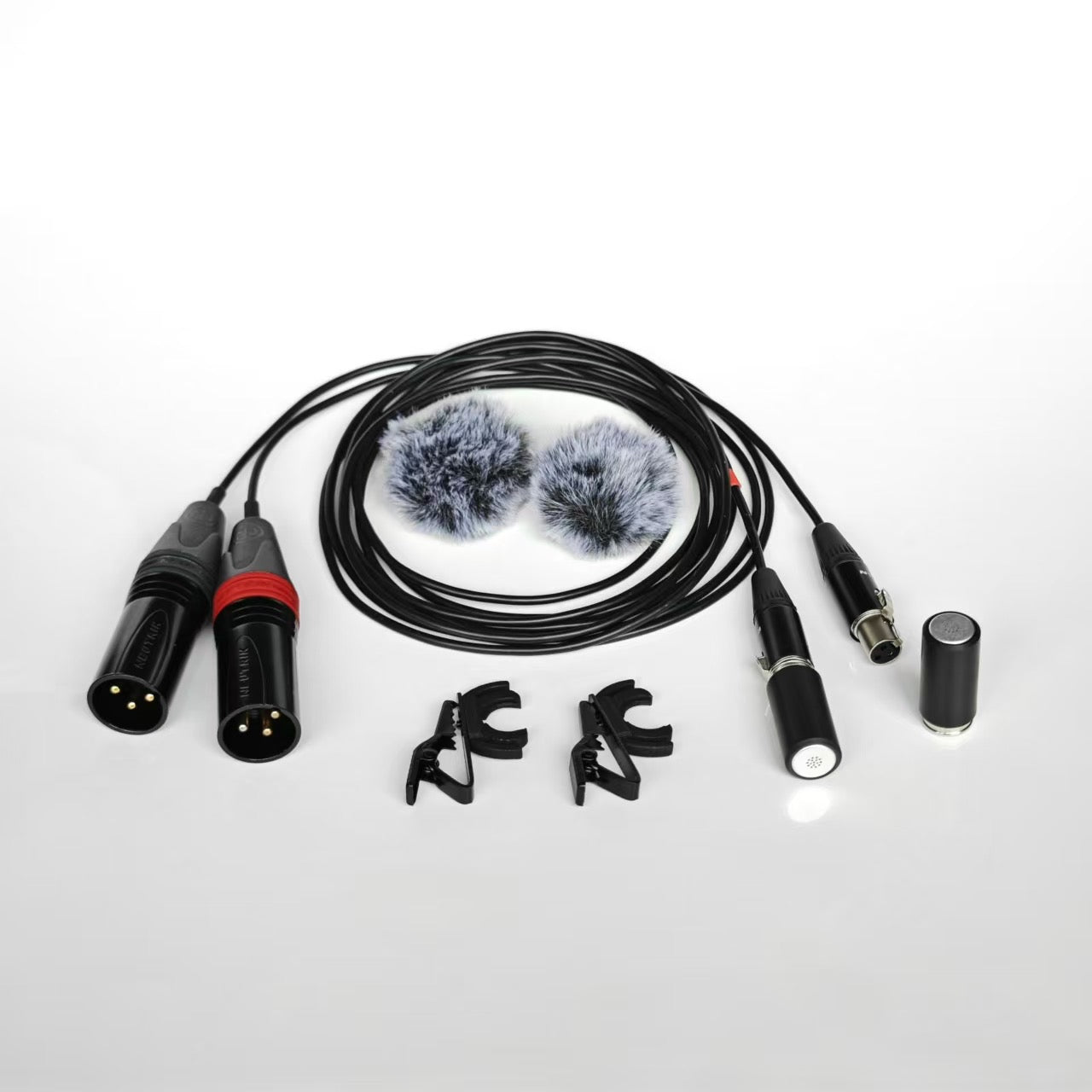

SS-DFMC Field recording series

SS-DFMC is a pair of phantom-powered, stereo-matched, high-quality omnidirectional condenser microphones, designed for precise field recording. Compared with standard built-in microphones, SS-DFMC delivers ultra-low self-noise and high sensitivity, making it ideal for capturing subtle environmental sounds and detailed natural textures in the field.

Technical Specifications:

• Microphone Type: Phantom-powered, stereo-matched, pre-polarized condenser microphones

• Operating Voltage: 24–48V phantom power (IEC 61938 compliant)

• Cable: 1.5 m length, 2.5 mm diameter per microphone

• Maximum SPL: ~122 dB SPL

• Sensitivity: -28 dB @ 1kHz (±3 dB)

• Equivalent Noise Level: ~14 dBA

• Output Connector: XLR-3M balanced, transformerless floating design

• Output Impedance: 30–50 Ω

• Power Consumption: ~3 mA per pin

• Dimensions: 26.2 mm × ⌀13 mm (~1/2”)

• Specifications subject to change without notice
