Akashic [RXTX]

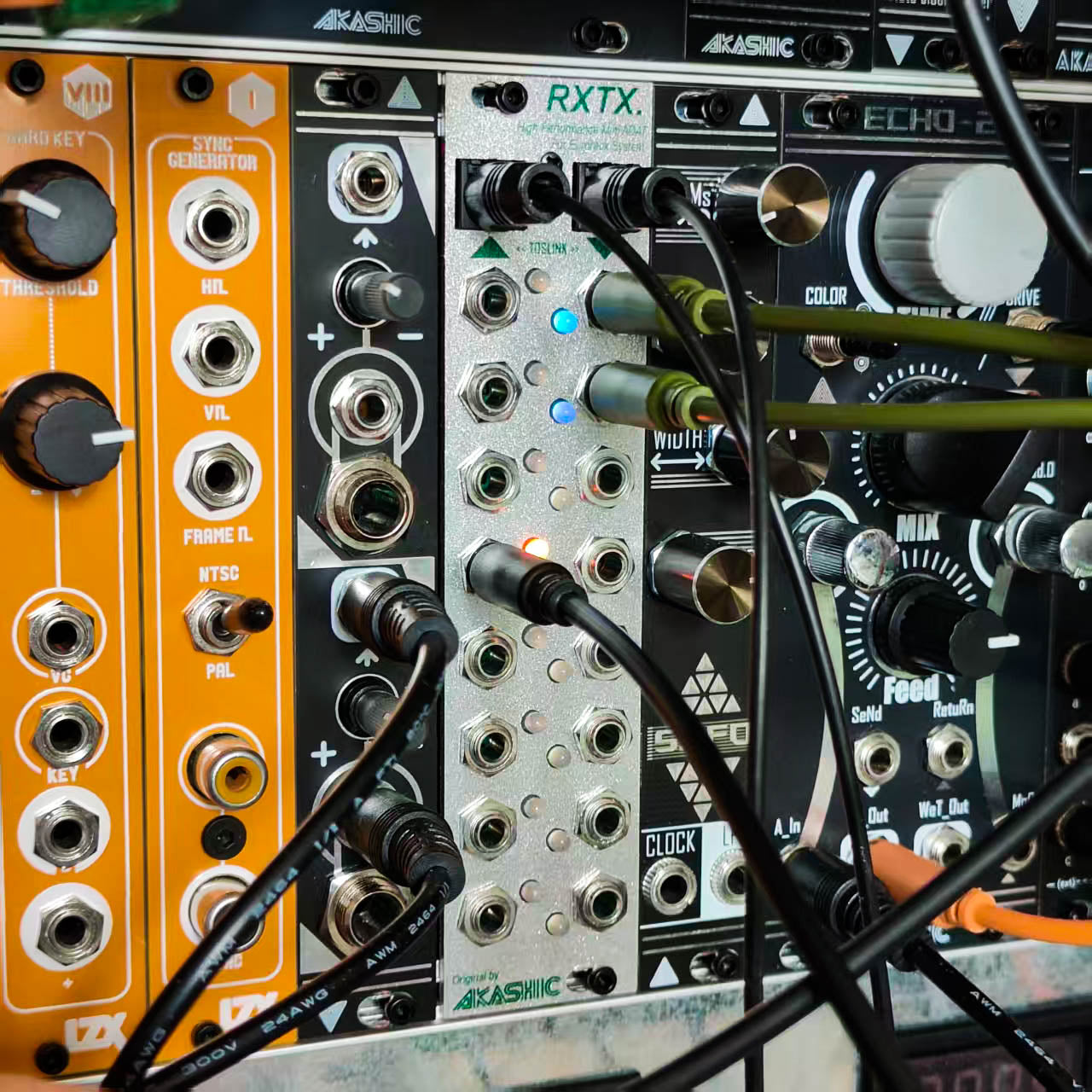

High-performance ADAT A/D & D/A converter designed for Eurorack systems

3U, 6hp

Power consumption: +12V 390mA / –12V 90mA

I/O Range: ±10V (20 Vpp)

10 Vpp corresponds to –6 dB

Supports 16/24-bit resolution, 44.1 kHz / 48 kHz sample rates

Clock mode: Slave

Factory-calibrated level accuracy

Silver anodized sandblasted aluminum panel (2 mm)

The current production cycle is about 3 weeks

Input Section (AC/DC Coupled)

• 8 × AC/DC inputs

• 4 × PCM4202 A/D converters

• Dynamic Range: 118 dB (A-weighted)

• THD+N: –105 dB

  (from 20 Vpp down to 6 Vpp)

• Input Impedance: 100 kΩ

• Audio-band digital noise floor: –90 dB to –80 dB

Output Section (DC Coupled)

• 8 × DC outputs

• 4 × PCM1794 D/A converters

• Dynamic Range: 127 dB

• THD+N: 0.0004%

  (from 4.5 Vrms up to 20 Vpp)

Included in the Box

• 1 × RXTX module

• 1 × Single-page manual & support card

• 1 × 16-pin to 10-pin Eurorack power cable

• 2 × 1-meter TOSLINK optical cables

• 1 × 1.6 mm black PCB front panel
