RAIN – SYNSO Modular Synth

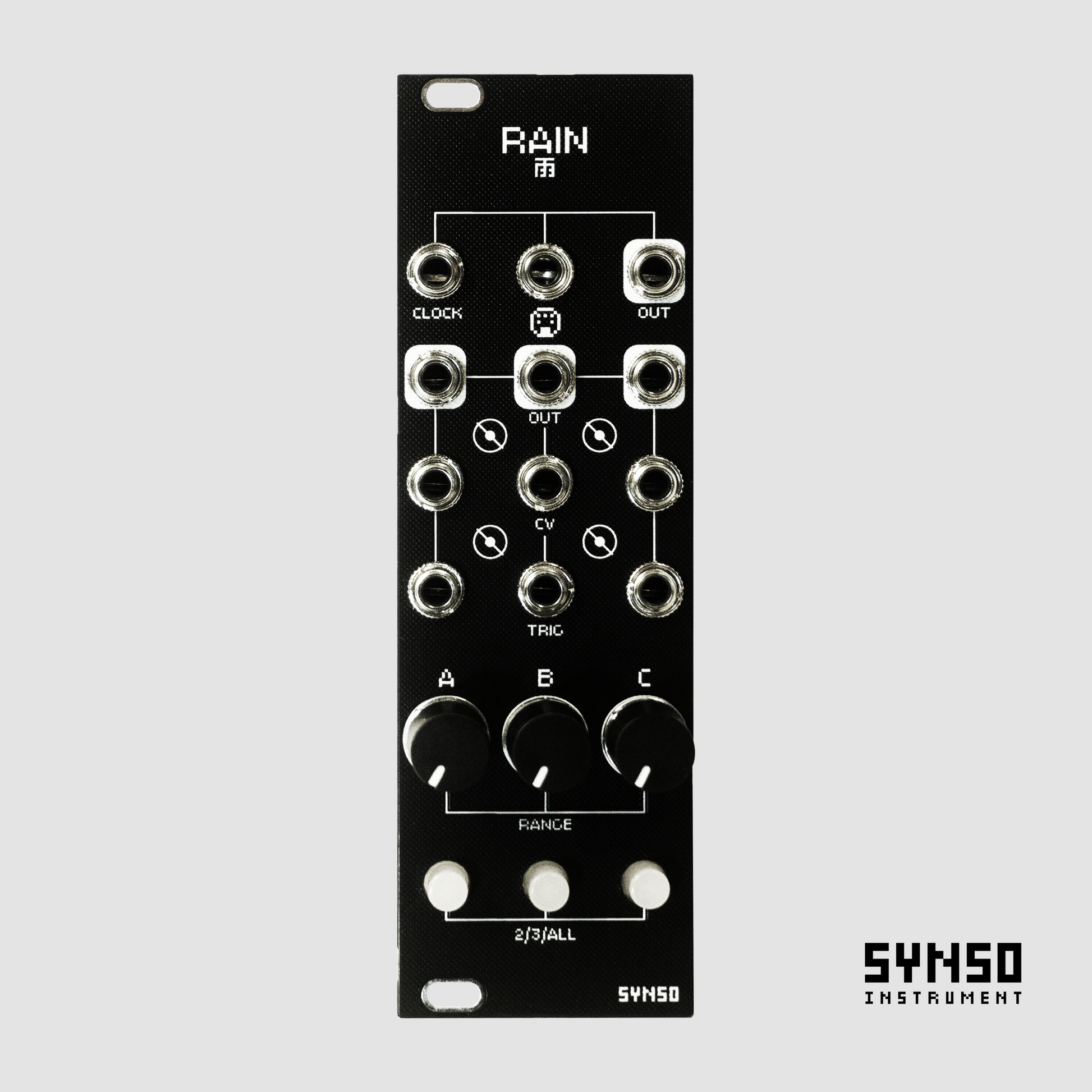

Triple Clock Multiplier

Bring rhythmic fills to life on stage

OUT / CV / TRIG / RANGE

Clock signals are multiplied and sent to OUT. Multiplication ratio is controlled by RANGE and CV (0–5V).

If CV is unconnected, it defaults internally to 5V.

TRIG controls when multiplication is triggered. If not connected, it normalizes to CLOCK.

(TRIG and CLOCK must be synchronized.)

Modes:

2 / 3 / ALL

• ON: triplet mode (×1, ×3, ×6)

• OFF: binary mode (×1, ×2, ×4, ×8, ×16)

• BLINK: full trigger mode (×1, ×2, ×3, ×4, ×6, ×8, ×16)
